Product Title：

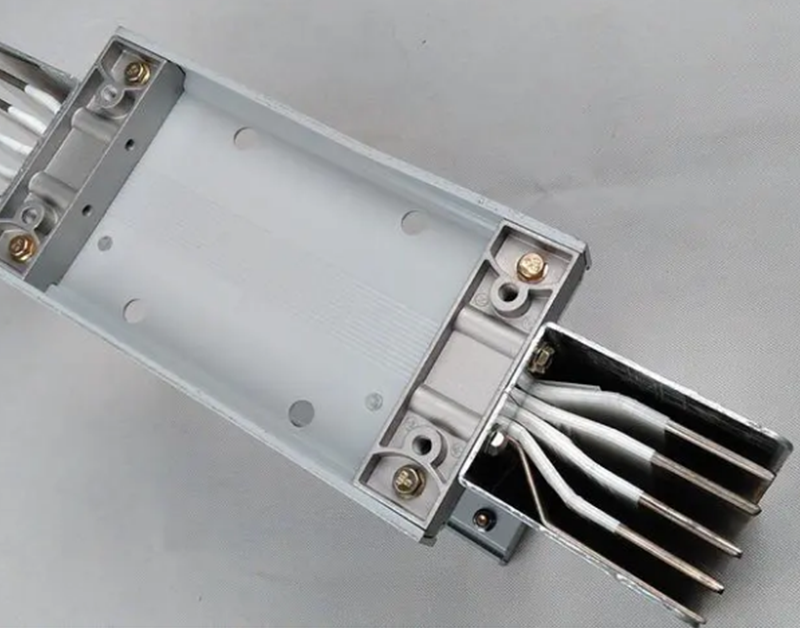

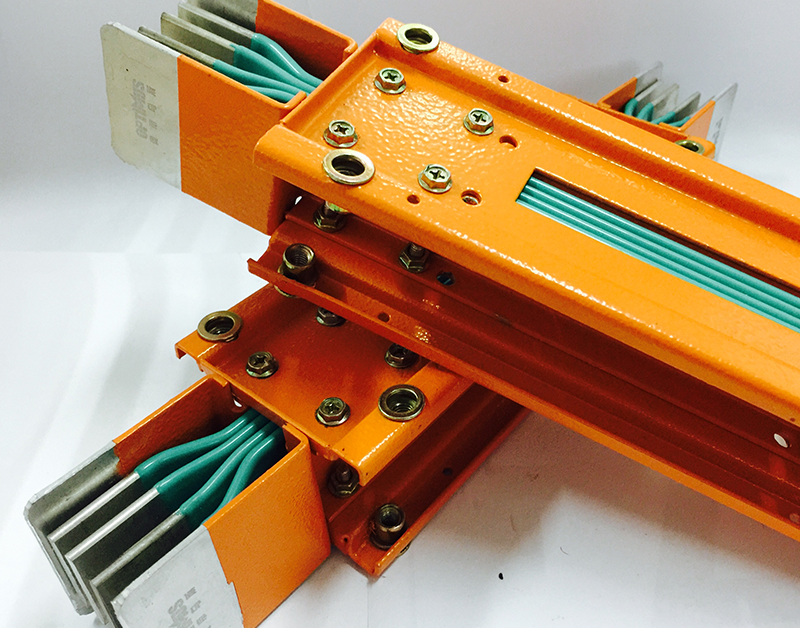

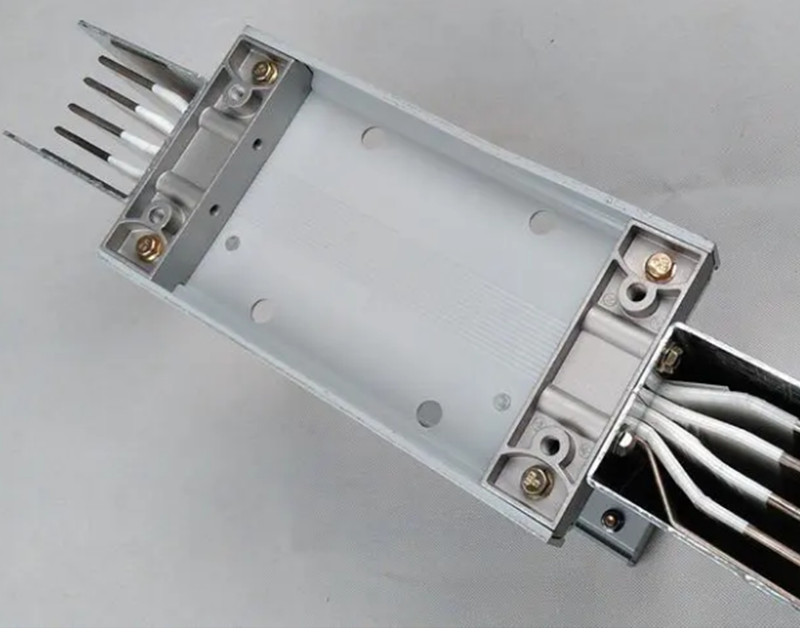

Low voltage epoxy insulation busbar

DESCRIPTION：

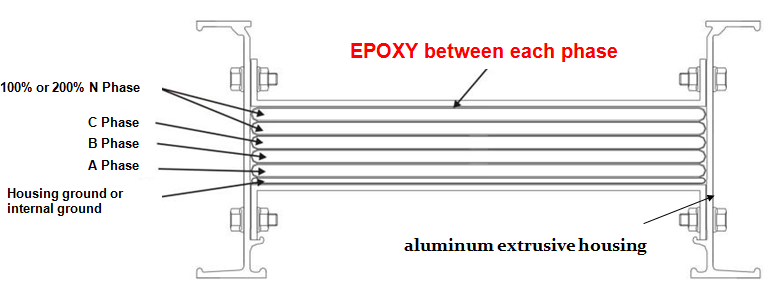

Epoxy insulation busbar adopts epoxy resin coating which can meet the temperature resistance standards of F class 155 ℃ or H class 180 ℃, can be  waterproof and resistant to high mechanical stress.

Application industry：

1.Residential, commercial office building, super tall building

2.Electronics , semiconductor and traditional industrial plant

3.Public buildings

Product Details：

Product Features:

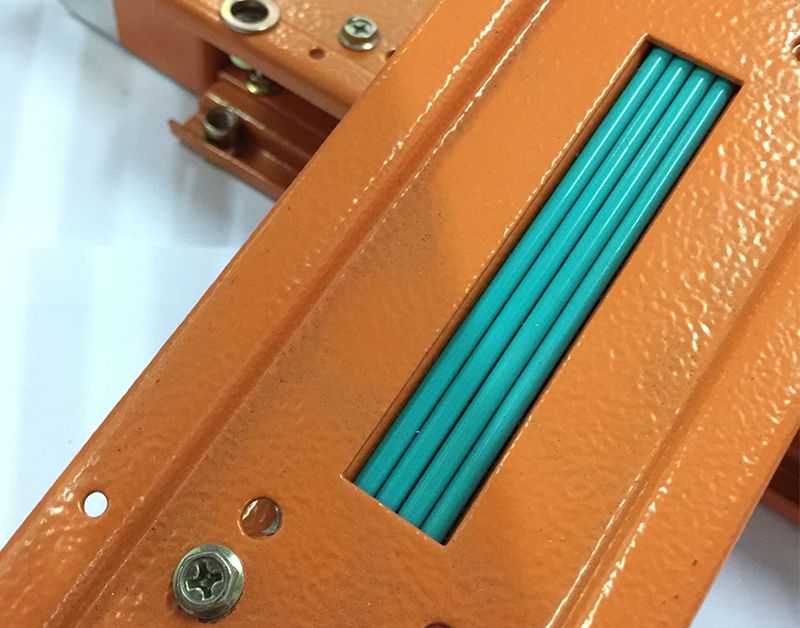

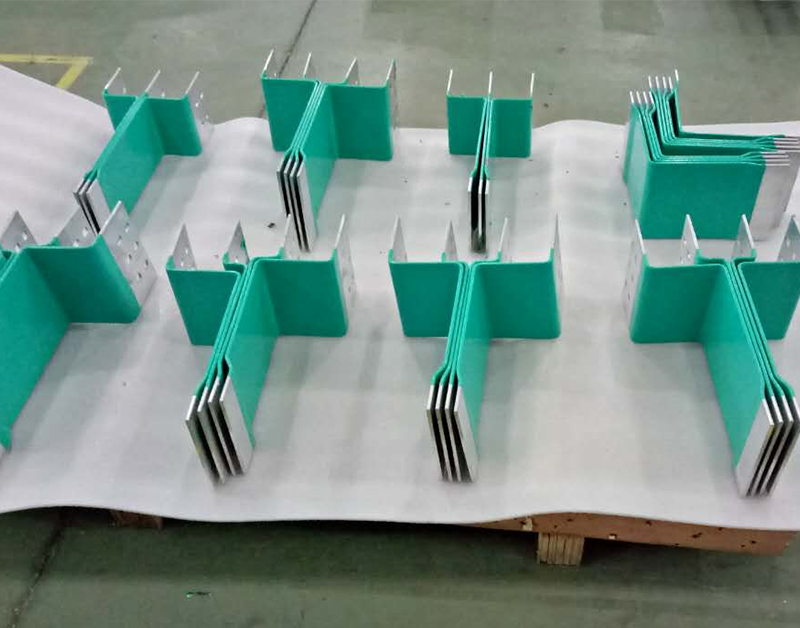

1.busbar insulation: epoxy  resin coating that meets the temperature resistance standards of F class 155 ℃ or H class 180 ℃, can be  waterproof and resistant to high mechanical stress.

2.Resist the impact caused by the power system.

3.Efficiency is not affected by different usage periods (peak and off peak).

4.Resist thermal shock caused by full load.

5.High stability in static state.

6.Has high mechanical stress to resist collisions.

7.High conductivity.

8.Waterproofing and chemical erosion

9.Will not release toxins.

Technical Parameter：

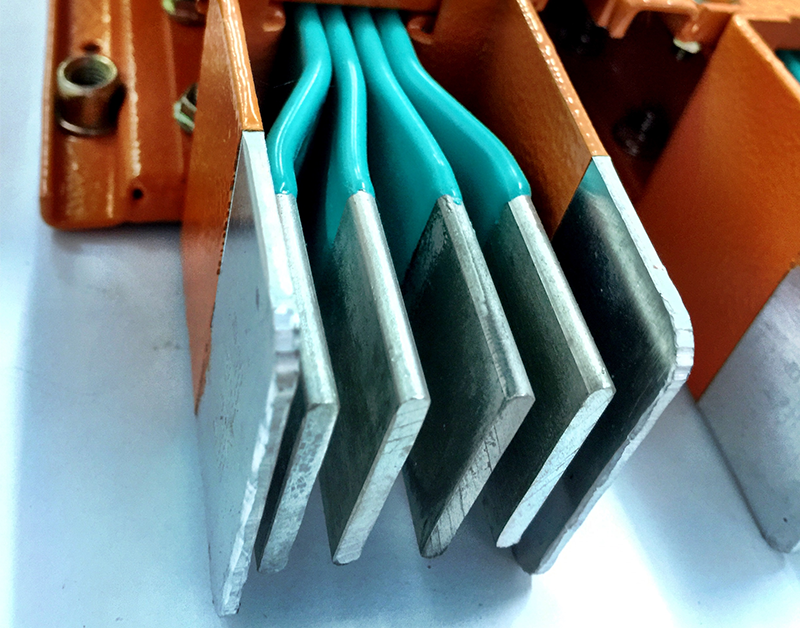

1.Conductor material:Copper/Aluminum

2.The range of current is as below:

100～5000A（AL）

250～6300A（CU）

3.Insulation:epoxy insulation class F 155℃/epoxy insulation class H 180℃

4.IP degree：

Feeder type：IP40、IP42、IP54、IP55、IP66

Plug-in type：IP40、IP42、IP54、IP55、IP2X

5.Voltage range：

Rated working voltage：690V

Rated insulation voltage：1000V

Quality Assurance：

Product warranty period:Within one and a half years from the date of shipping

After-sale Service：

Respond to customer feedback promptly and provide solutions in a very short amount of time.
