Product Title：

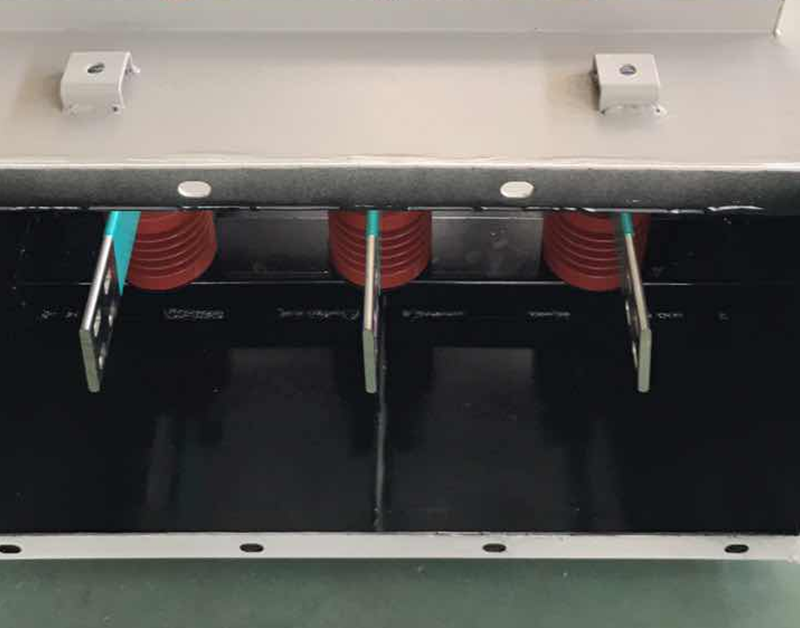

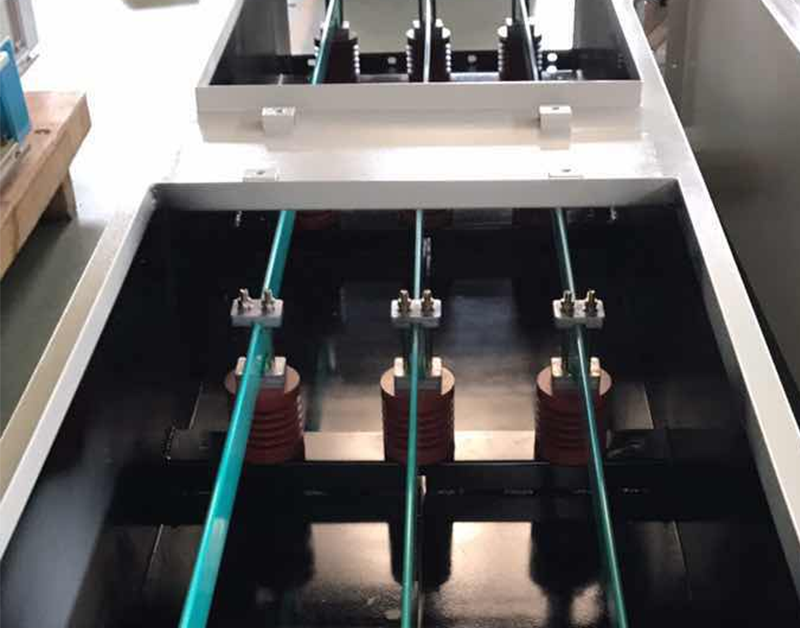

Medium voltage enclosed busbar

DESCRIPTION：

The medium voltage enclosed busbar has excellent short-circuit resistance performance. Due to the protection of aluminum or weak magnetic steel plate shell, it can effectively reduce the structural heating caused by eddy currents or circulating currents, reduce the temperature rise of the busbar shell, reduce electrical energy loss, increase current carrying capacity, and reduce short-circuit electric force.

Application industry：

Applied in large substations, power supply systems, and self owned power plants of large enterprises.

Product Details：

Product Features:

1.Excellent short-circuit resistance performance

2.Reduce the temperature rise of the busbar casing

3.Reduce electrical energy loss and increase current carrying capacity

4.Reduce short-circuit electrodynamic force

5.Safe, aesthetically pleasing, and reliable

Technical Parameter:

1.Conductor material:Copper

2.The range of current is as below:

1000～6800A

3.IP degree:IP54

4.Voltage range:

Rated voltage:3.15KV,6.3KV,10.5KV,35KV

Maximum operating voltage:3.6KV,7.2KV,12KV,40.5KV

Quality Assurance:

Product warranty period:Within one and a half years from the date of shipping.

After-sale Service:

Respond to customer feedback promptly and provide solutions in a very short amount of time.

Transport :
