Product Title：

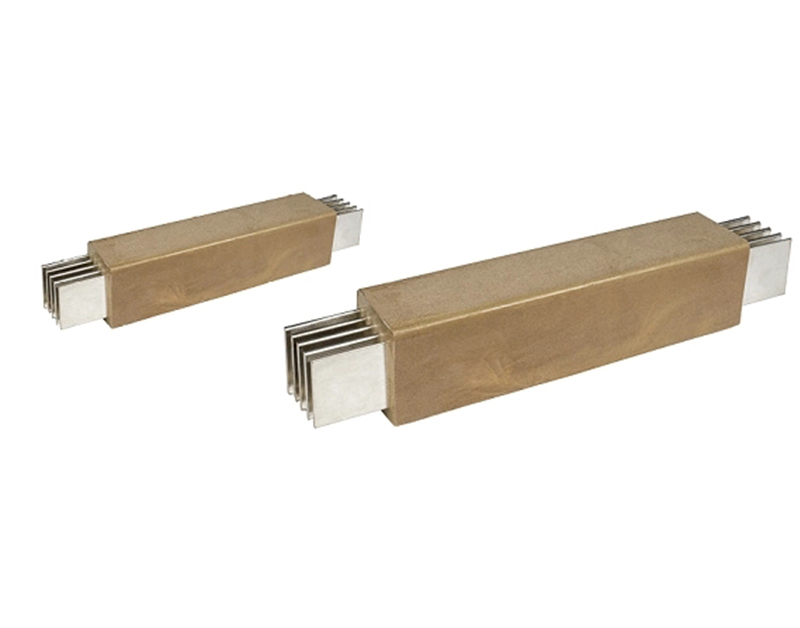

Low voltage cast resin busbar

DESCRIPTION：

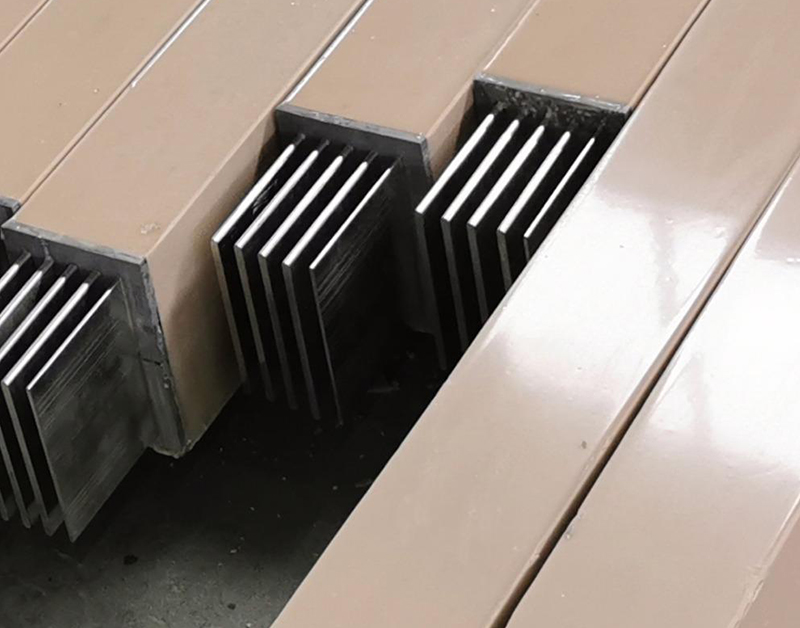

Pro optimus low voltage busbar is positioned as a fully cast resin busbar for power systems below 1KV,it has the characteristics of electrical safety and space saving,and its design adopts insulating materials are directly cast and molded for copper(aluminum)conductor.The insulating material is made of inorganic mineral and other excellent materials and molded with epoxy resin with good insulation characteristics of Class F 155℃ above and mechanical strength resistance,moisture proof,not suitable for burning and self extinguishing properties.

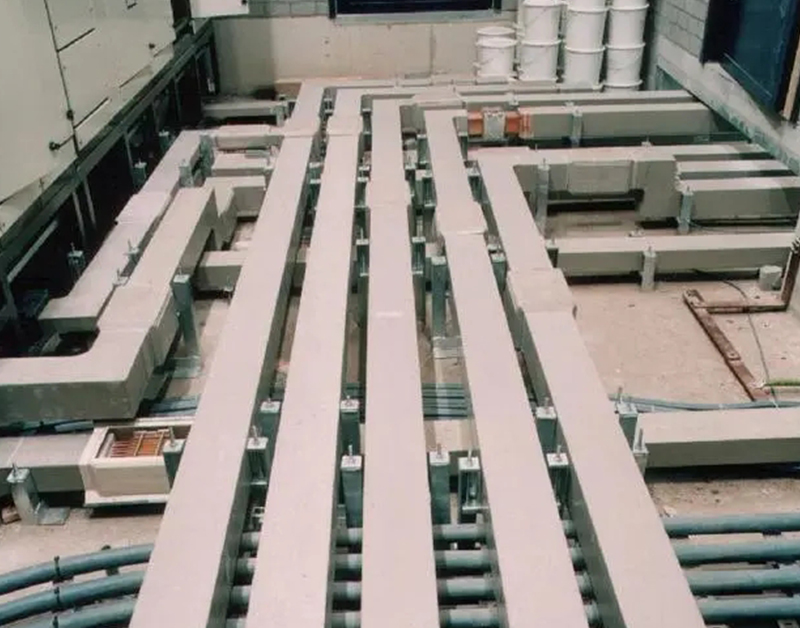

Application industry：

1.Extremely dangerous and contaminated chemical plant

2.Salty zone and port

3.Underground pines and tunnels

4.Basement and pipeline room

5.Hospitals and ammunition rooms

6.Information technology and information center

7.Clean room

Product Details：

Product Features:

1.Waterproof and moisture-proof up to IP68 (IEC 529). Even if the busbar is immersed in more than 1 meter of water, it can still generate electricity safely for 48 hours.

2.The fire resistance is as high as GB 9978.

3.The voltage mode (1000V) has been tested in GB 7251.1, GB 7251.2, IEC 439-1, IEC 439-2, NEMA, and NFPA.

4.Two hours of continuous operation with a 25% overload load.

5.Rated current range of (copper) 250A~5000A, (aluminum) 250A~4000A.

6.Fully resin covered, resistant to electromagnetic erosion, high mechanical strength, small size, chemical resistance, animals, insects, and gnawing tanks.

7.UV resistant.

8.Automatic flameout isolation, excellent flame retardancy, and heat resistance.

9.Easy to install, no maintenance required.

10.Temperature rise not exceeding 55 ℃.

11.Low voltage drop and low impedance.

Technical Parameter:

1.Conductor material:Copper/Aluminum

2.The range of current is as below:

250～4000A（AL）

250～5000A（CU）

3.Insulation:epoxy insulation class F 155℃/epoxy insulation class H 180℃

4.IP degree:IP68

5.Voltage range:

Rated working voltage:690V

Rated insulation voltage:1000V

Quality Assurance:

Product warranty period:Within one and a half years from the date of shipping

After-sale Service:

Respond to customer feedback promptly and provide solutions in a very short amount of time.

Transport :
