Product Title：

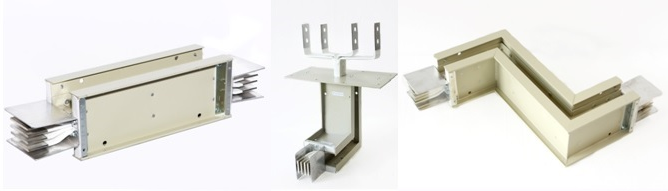

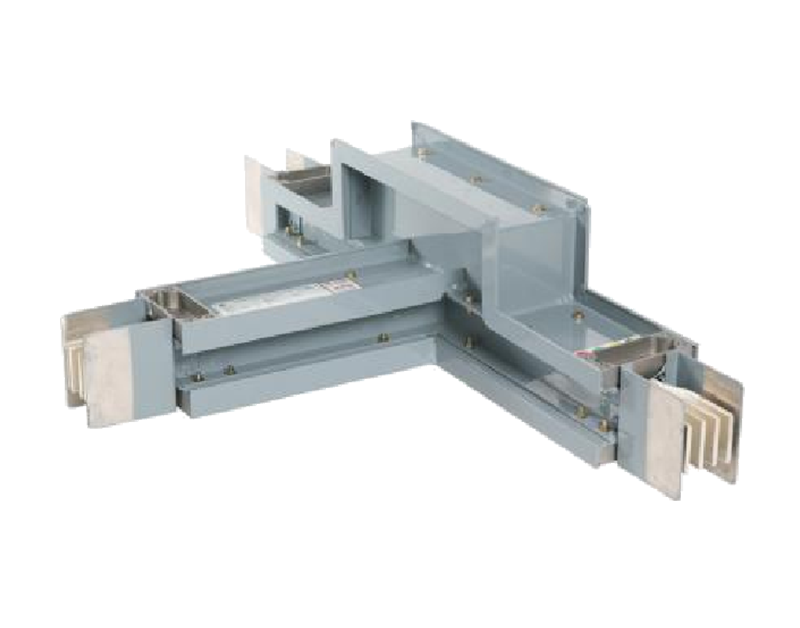

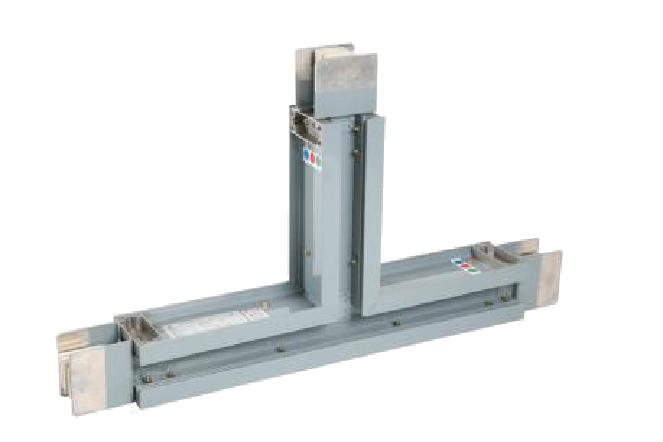

Low voltage sandwich busbar

DESCRIPTION：

Low voltage sandwich busbar adopts a typical "sandwich" structure, with tight conductor arrangement and overall heat dissipation, which is a safe and reliable power distribution system with compact structure and less space occupied. The product protection class can be up to IP66 according to the user's requirements. It is suitable for the power supply system of 3P3W/3P4W/3P5W with frequency 50—60HZ, and rated working voltage could be up to 690V, rated insulation voltage could be up to 1000V, with rated working current of 250—6300A. It has the characteristics of stable and reliable power distribution efficiency, good heat dissipation, voltage drop, mechanical impact resistance and convenient installation.

Application industry：

1.Residential, commercial office building, super tall building

2.Electronics , semiconductor and traditional industrial plant

3.Public buildings

Product Details：

Product Features:

1.Use aluminum or steel material as shell and do electrostatic powder coating on the surface.salt and fog resistant ability can be up to 1000 hours.

2.Improve the heat dissipation performance of the shell.

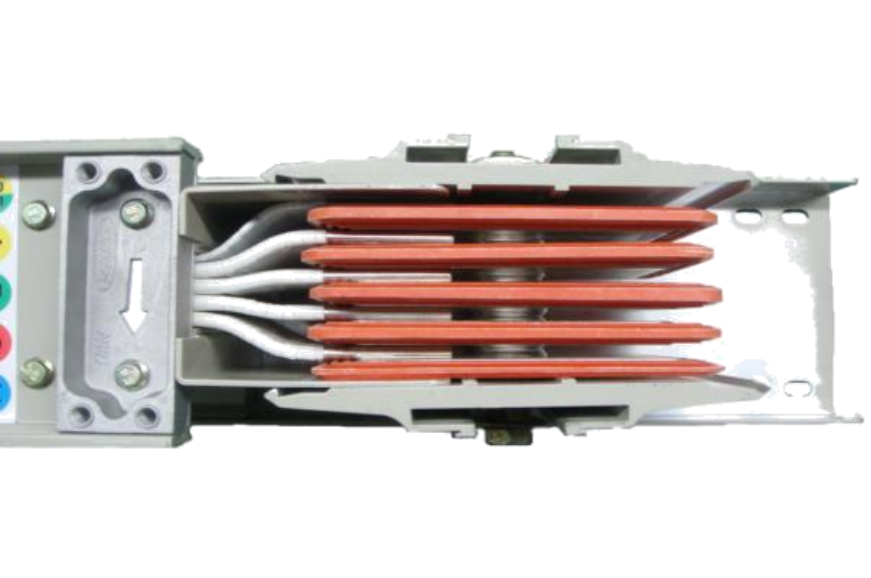

3.Use copper or aluminum as the conductor. The surface is composite coated to improve the oxidation resistance. The conductor uses Mylar sheet (Class B 130℃ or Class F 155℃ ),Epoxy curing（Class H 180℃）, Epoxy + Mylar combination or Mica film）;The joint is silver plated and tin plated to reduce the contact resistance and improve the electrical conductivity.

Technical Parameter:

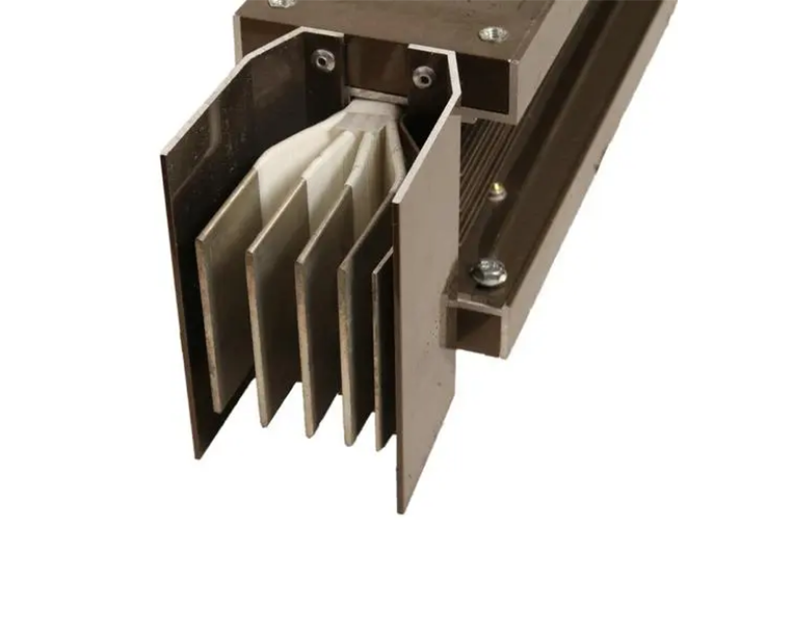

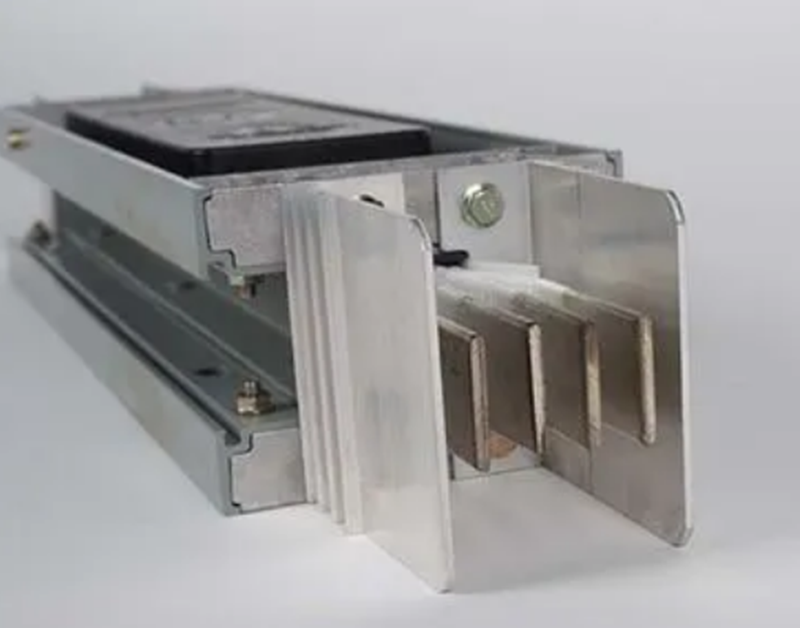

1.Conductor material:Copper/Aluminum

2.Current:Cu 250—6300A;Al 100—5000A

3.Insulation:PET(Mylar)class B 130℃/Epoxy class F 155℃/Epoxy class H 180℃

4.IP degree：

Feeder type：IP40、IP42、IP54、IP55、IP66

Plug-in type：IP40、IP42、IP54、IP55、IP2X

5.Voltage range：

Rated working voltage：690V

Rated insulation voltage：1000V

Quality Assurance:

Product warranty period:Within one and a half years from the date of shipping

After-sale Service:

Respond to customers feedback promptly and provide solutions in a very short amount of time.

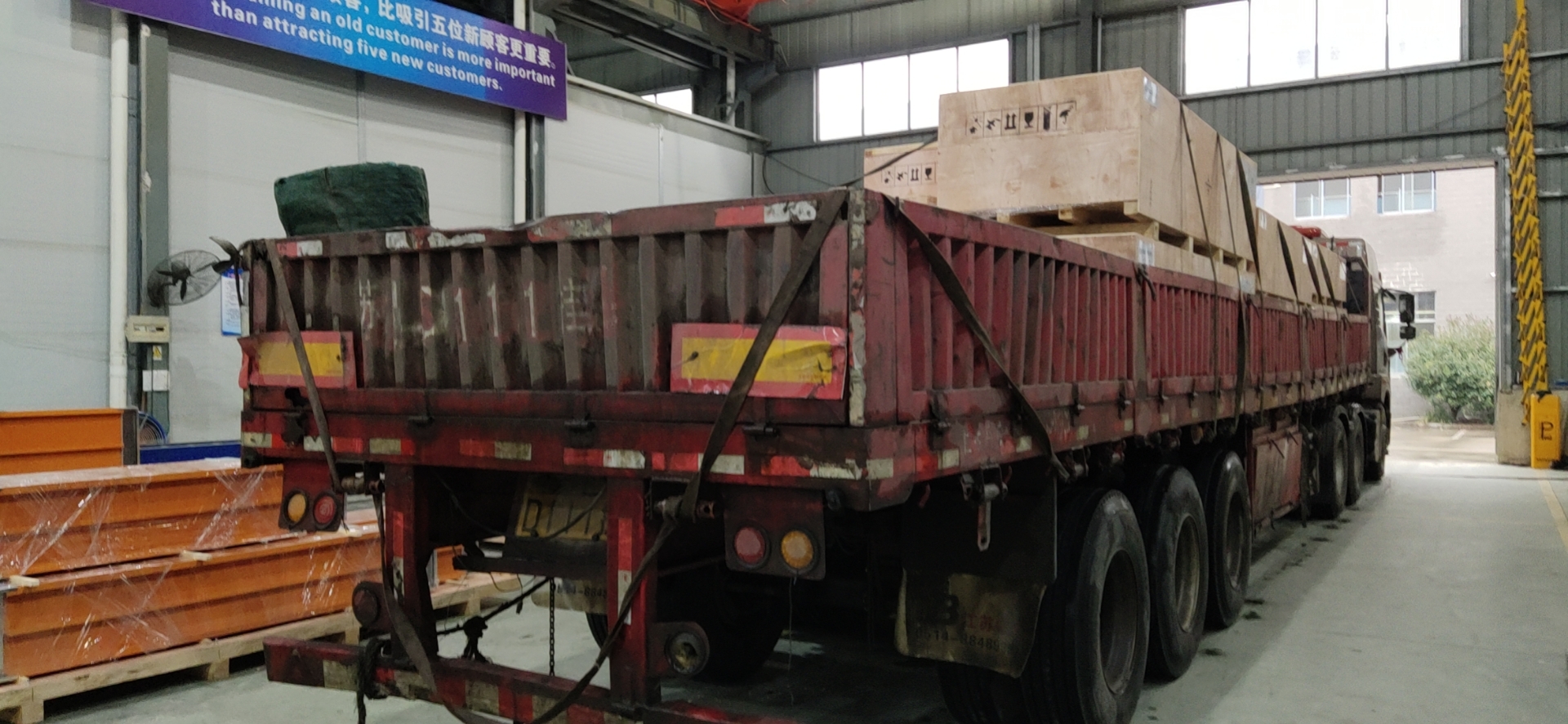

Transport:
