Product Title：

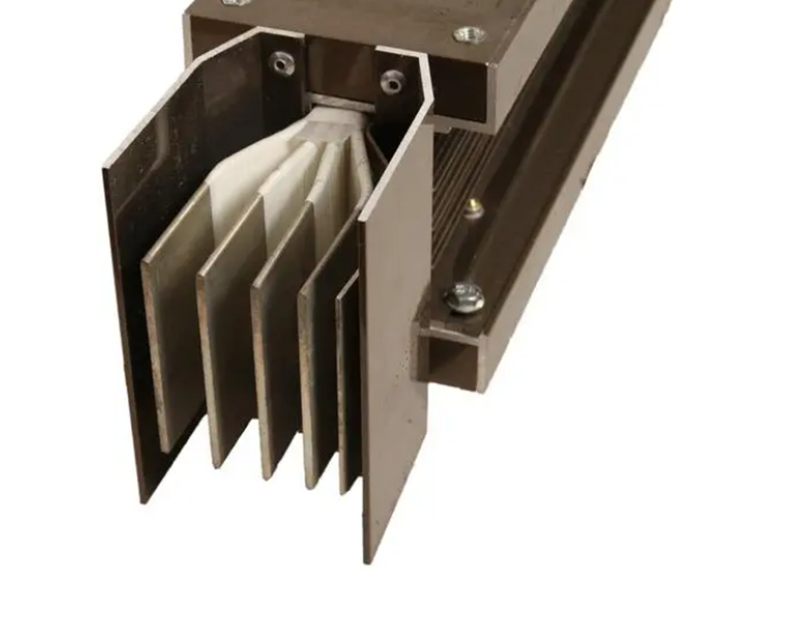

Low voltage fire rated busbar

DESCRIPTION：

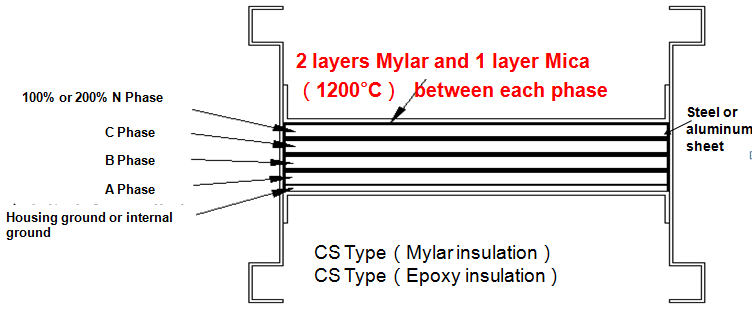

Fire rated busbar uses the whole wrap in Mica film of insulating material,and has been successfully tested for 840℃ 30 minutes of fire proof resistance of JIS C8364,JIS A1304,GA/T537,CNS14286 and CNS12514.

Application industry：

1.Residential, commercial office building, super tall building

2.Electronics , semiconductor and traditional industrial plant

3.Public buildings

Product Details：

Product Features:

1.Use aluminum or steel material as shell and do electrostatic powder coating on the surface.salt and fog resistant ability can be up to 1000 hours.

2.Improve the heat dissipation performance of the shell.

3.Use copper or aluminum as the conductor. The surface is composite coated to improve the oxidation resistance. The conductor use Mylar sheet (Class B 130℃ or Class F 155℃ ),Epoxy curing（Class H 180℃）, Epoxy + Mylar combination or Mica film）;The joint is silver plated and tin plated to reduce the contact resistance and improve the electrical conductivity.

Technical Parameter:

1.Conductor material:Copper/Aluminum

2.Current:Cu 250-6300A;Al 100-5000A

3.Insulation:PET(Mylar)class B 130℃/Epoxy class F 155℃/Epoxy class H 180℃

4.IP degree：

Feeder type：IP40、IP42、IP54、IP55、IP66

Plug-in type：IP40、IP42、IP54、IP55、IP2X

5.Voltage range：

Rated working voltage：690V

Rated insulation voltage：1000V

Quality Assurance:

Product warranty period:Within one and a half years from the date of shipping

After-sale Service:

Respond to customer’s feedback promptly and provide solutions in a very short amount of time.

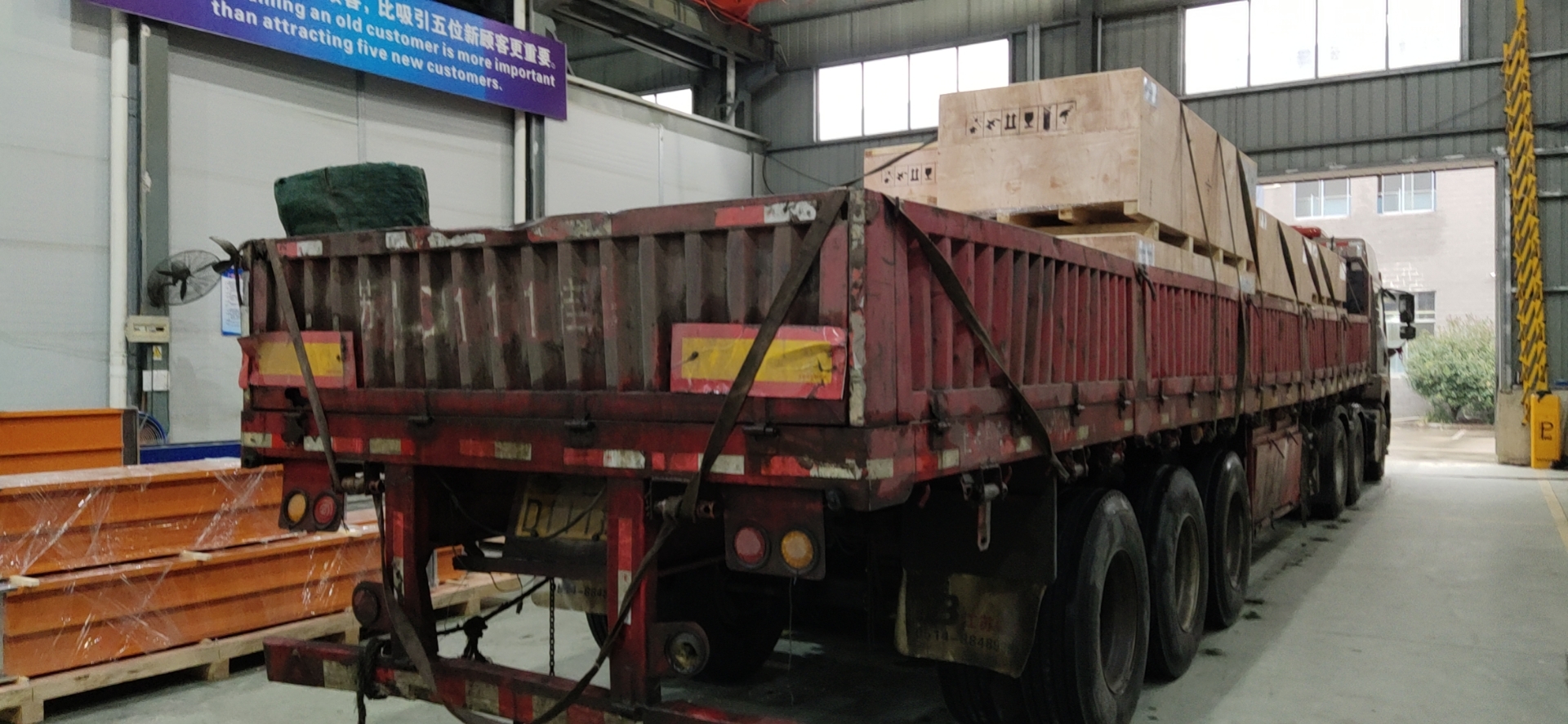

Transport :
